4 Wheels Independent Suspension Intelligent Mobile Robot Platform for Delivery Transport

Customization: Available
Control Mode: Continuous Path Control
Drive Mode: Electric

Product Description

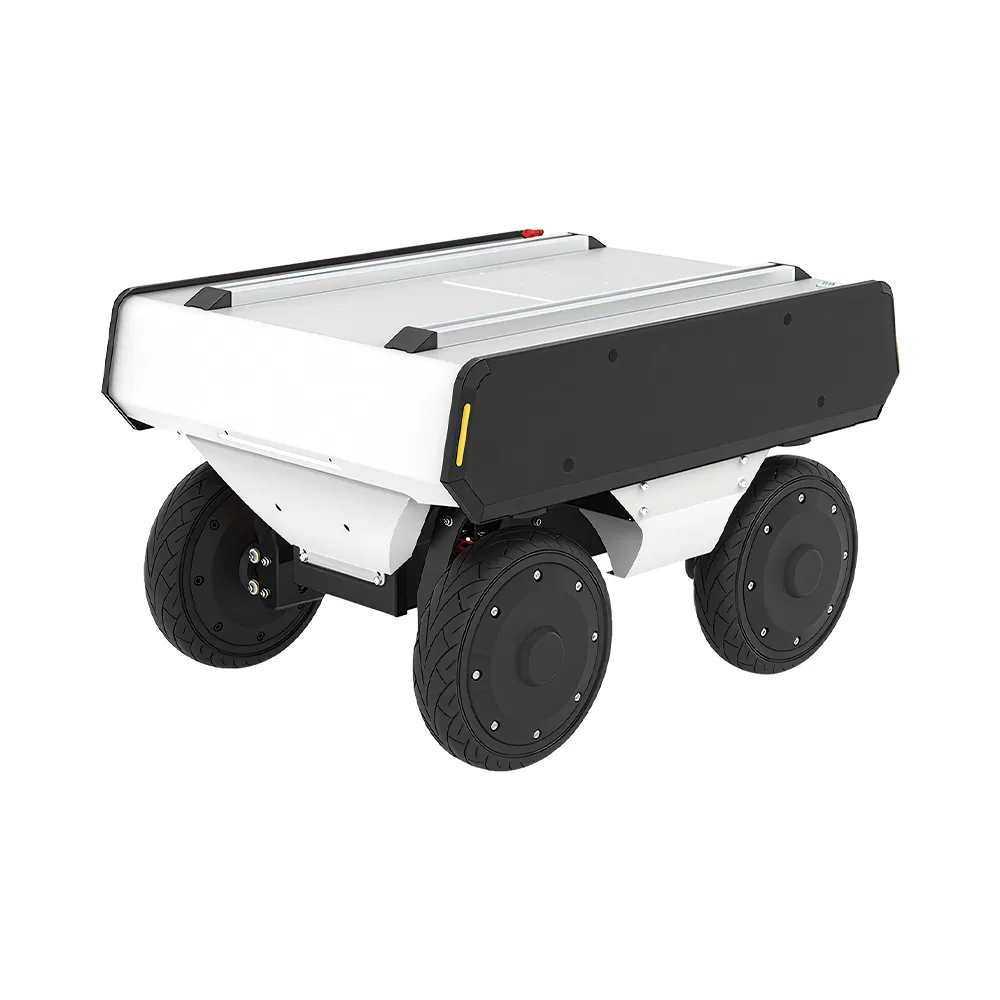

4 Wheels Independent Suspension Intelligent Mobile Robot Platform for Delivery Transport
📊 Basic Info.
Load Capacity100 kg
TypeAGV (Automated Guided Vehicle)
Structural Form4-Wheel Steering & Drive
Drive Motor350W*4 Hub Motor
Braking TypeMotor Brake
Running Speed5.4 Km/H
Range40 Km
Ground ClearanceSuspension 90mm/Chassis 120mm
Max Climbing Angle15°(Full Loaded)
Wading Depth100mm

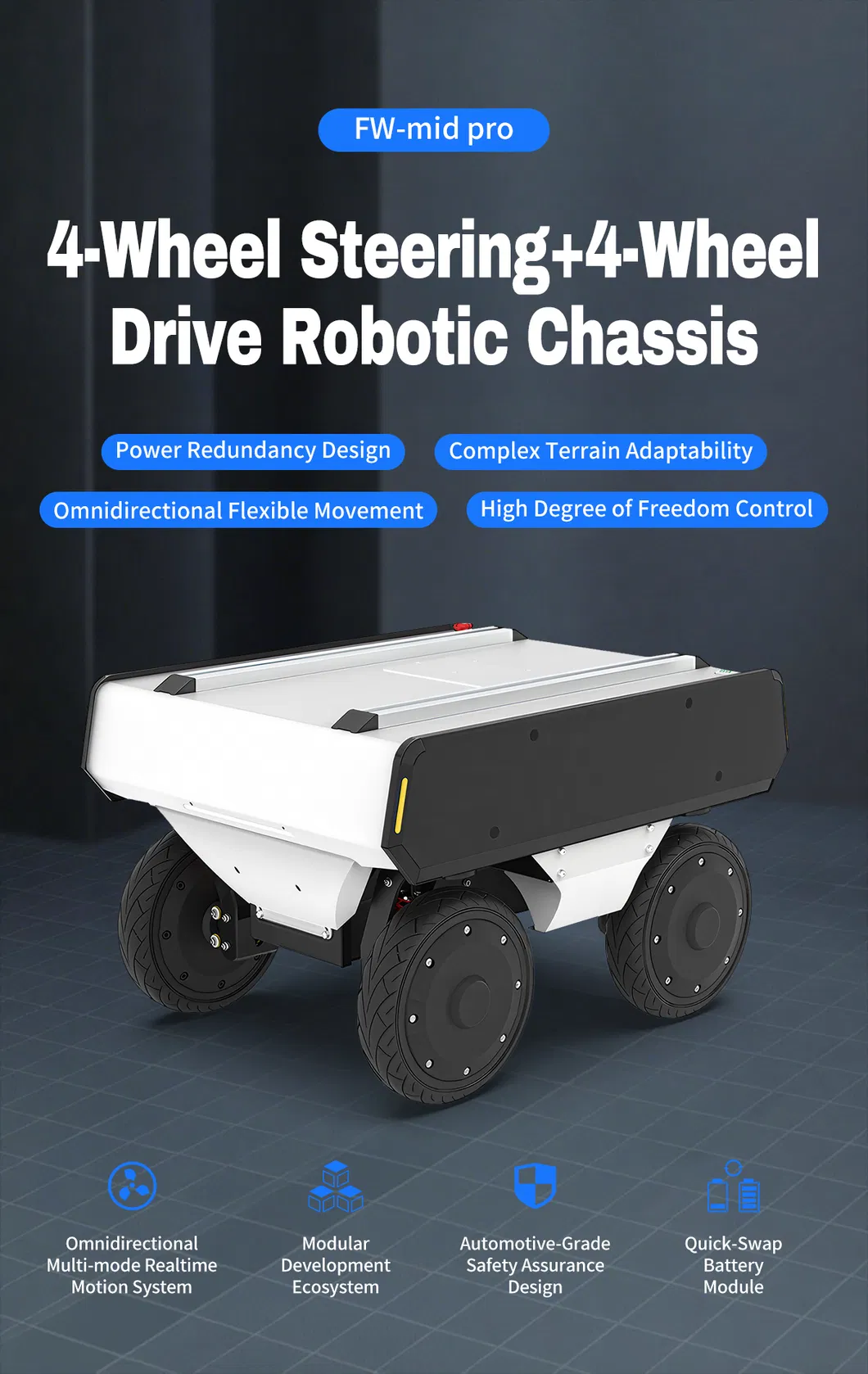

Intelligent Mobile Robot Platform Front View

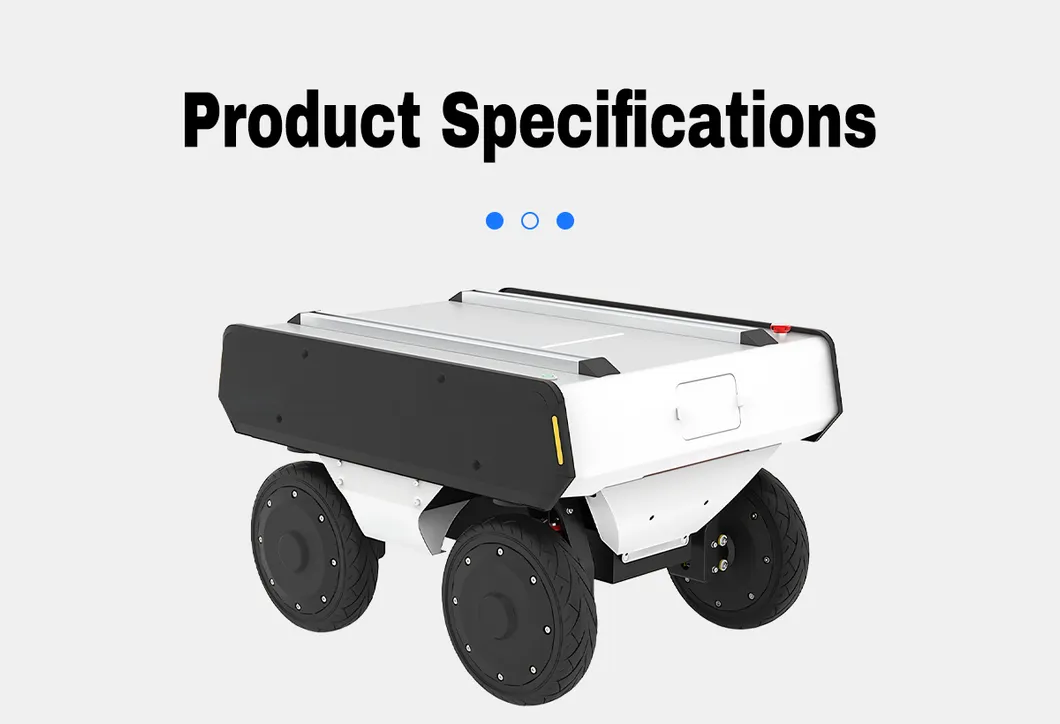

Intelligent Mobile Robot Platform Side View
📝 Product Description

The FW-mid is a versatile wheeled robotic mobile chassis, embodying exceptional flexibility. Its four-wheel drive (4WD) structure, with independent four-wheel drive and steering, allows for precise control of chassis steering. The independent drive provides a strong driving force, superior maneuverability, and off-road performance.

Its flexible control enables it to move laterally and on-site steering, and its excellent terrain adaptability makes it suitable for a variety of applications both indoors and outdoors. Its smooth, low-noise ride and tire-resistant design combine the advantages of both front-steering and differential systems, overcoming the steering shortcomings of four-wheel differentials.

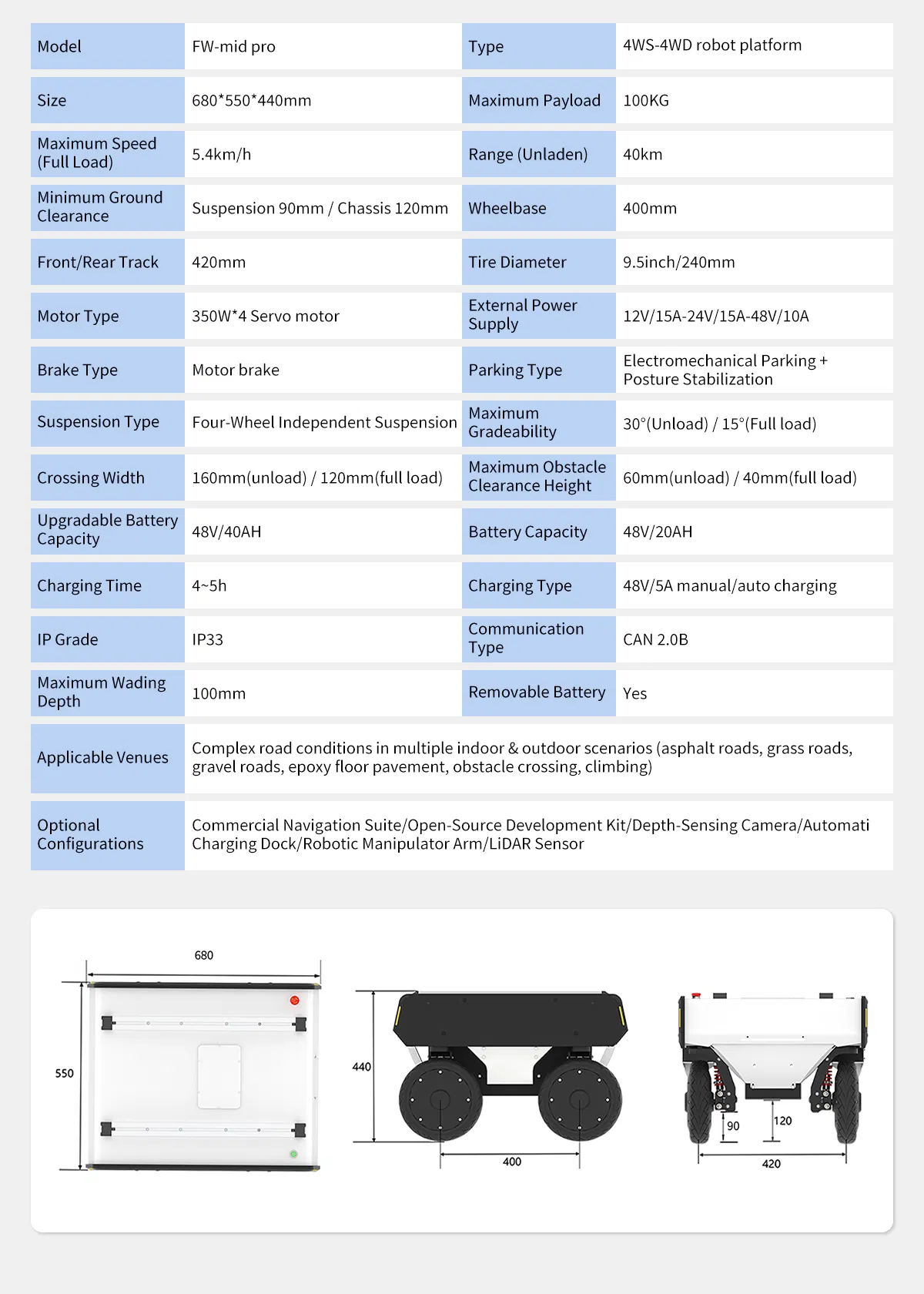

Type4WS-4WD robot platform
Drive Motor350W*4 Servo hub motor
Braking TypeMotor brake
Suspension TypeFour-Wheel Independent Suspension
Maximum Payload100KG
Maximum Speed (Full Load)5.4 km/h
Maximum Gradeability30°(Unload) / 15°(Full load)
Applicable ScenariosComplex road conditions: asphalt, grass, gravel, epoxy floor, obstacle crossing, climbing.

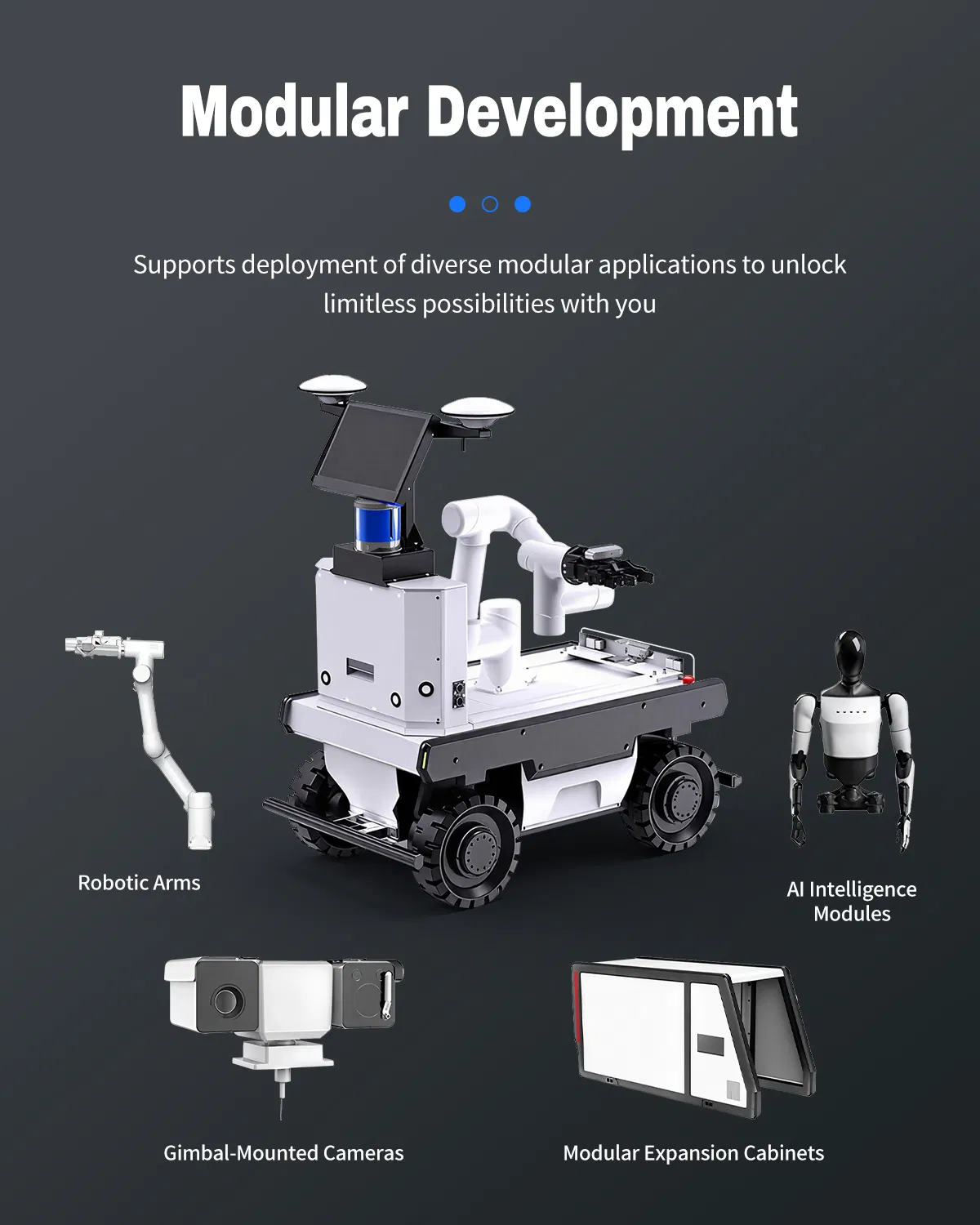

Optional ConfigurationsNavigation Suite, Open-Source Dev Kit, Depth Camera, Auto-Charging Dock, Manipulator Arm, LiDAR.
📷 Technical Gallery
Robot Detail 1
Robot Detail 2
Robot Detail 3
Robot Detail 4

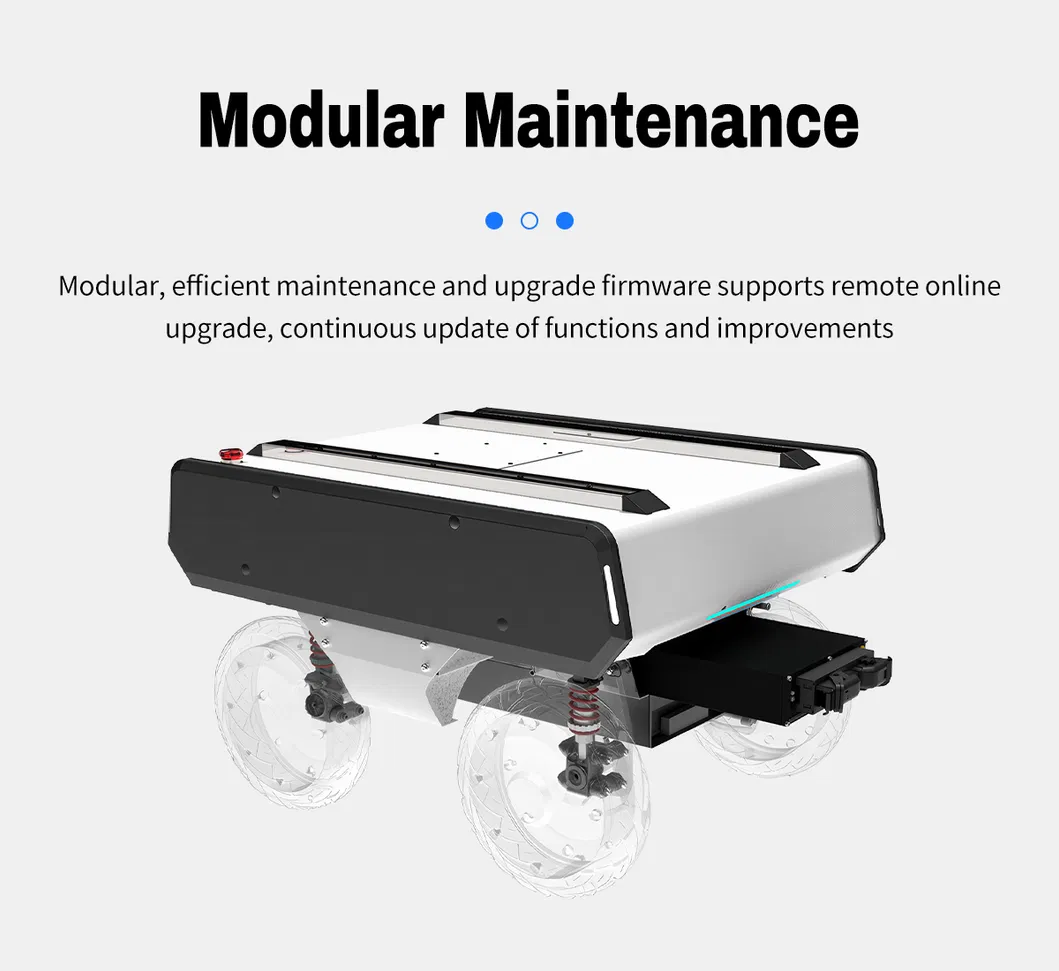

Robot Detail 5

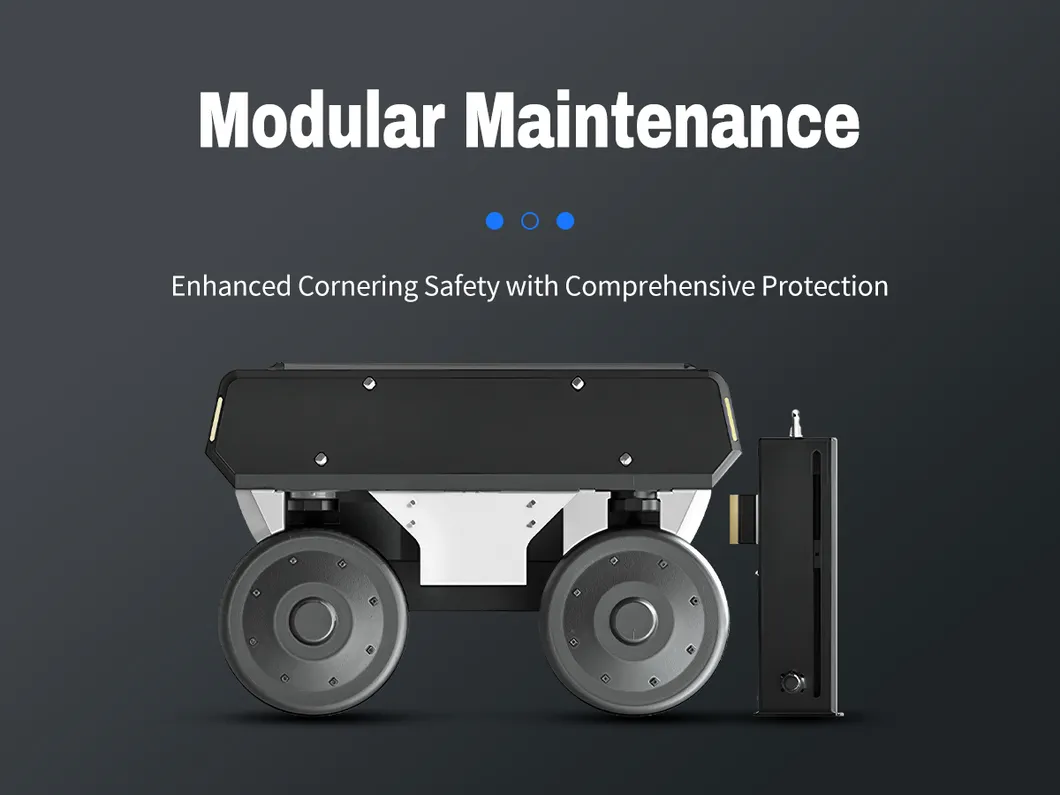

Robot Detail 6
Robot Detail 7

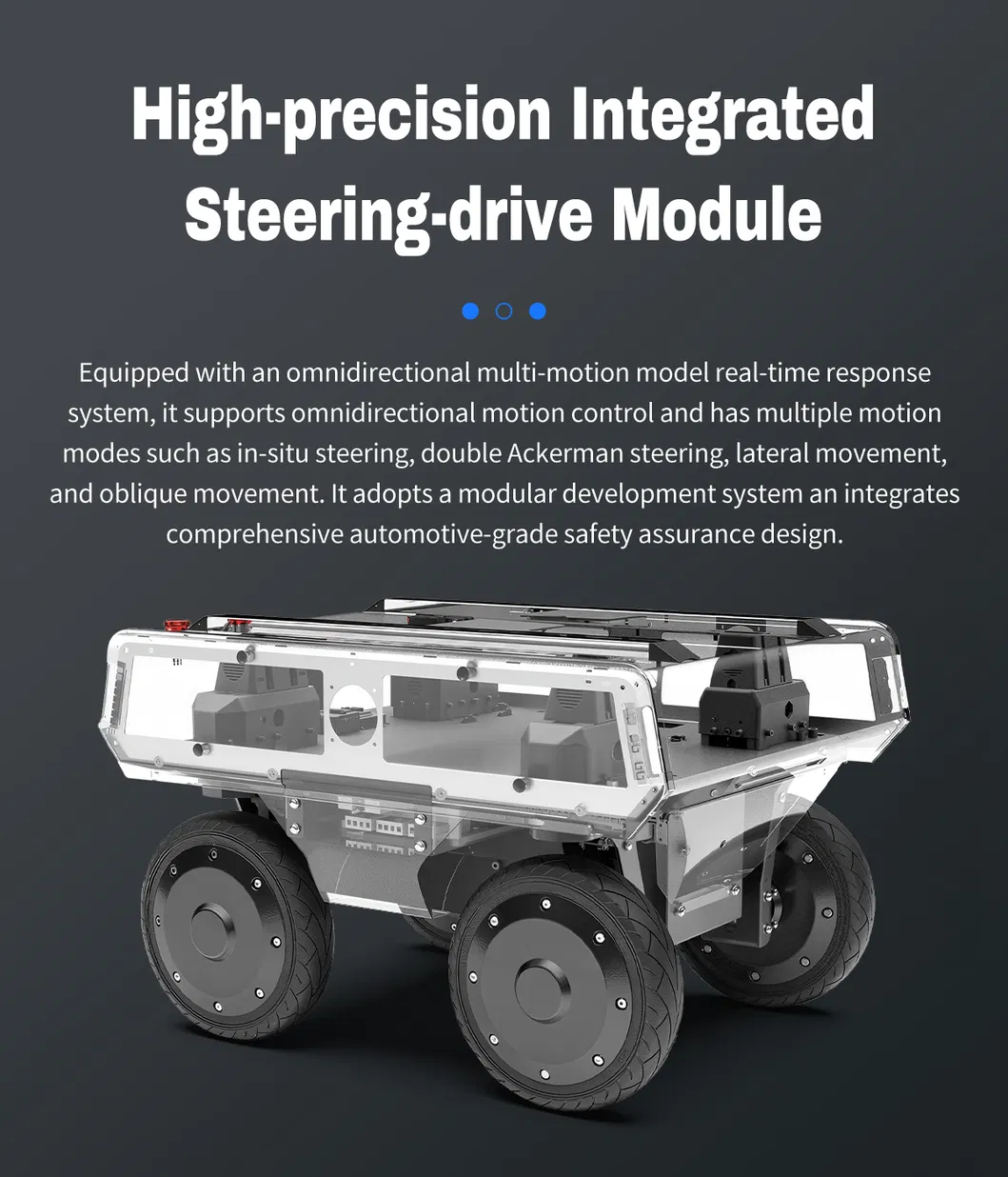

Robot Detail 8

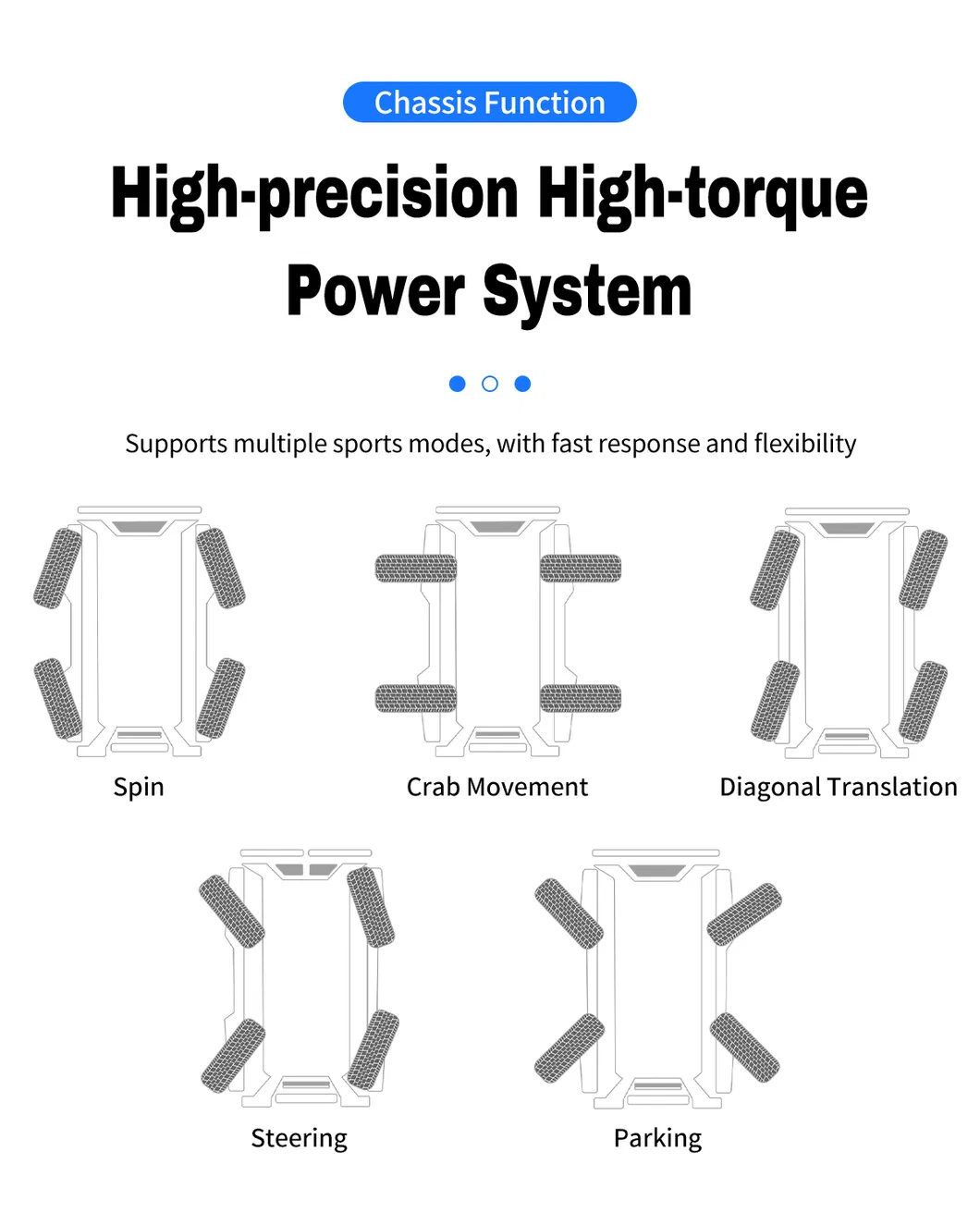

Robot Detail 9

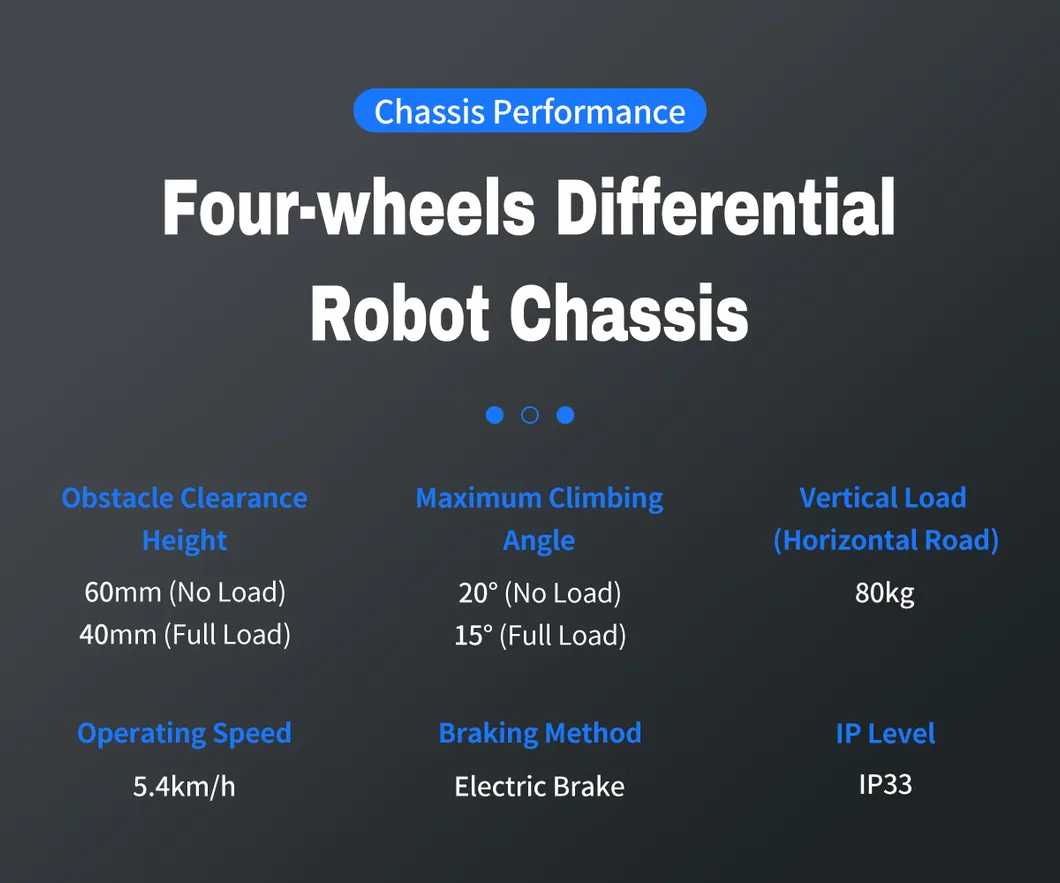

Robot Detail 10

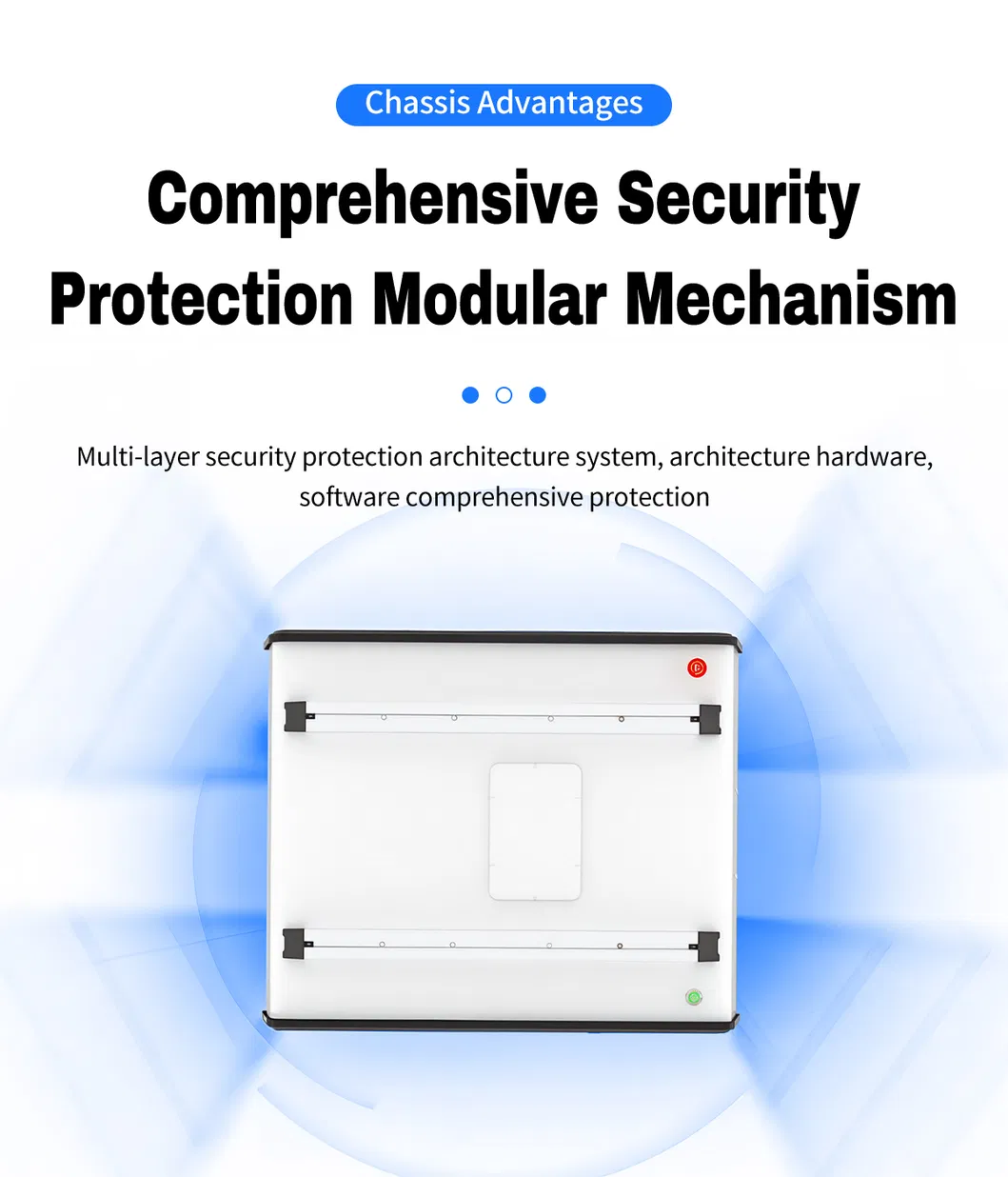

Robot Detail 11
Robot Detail 12

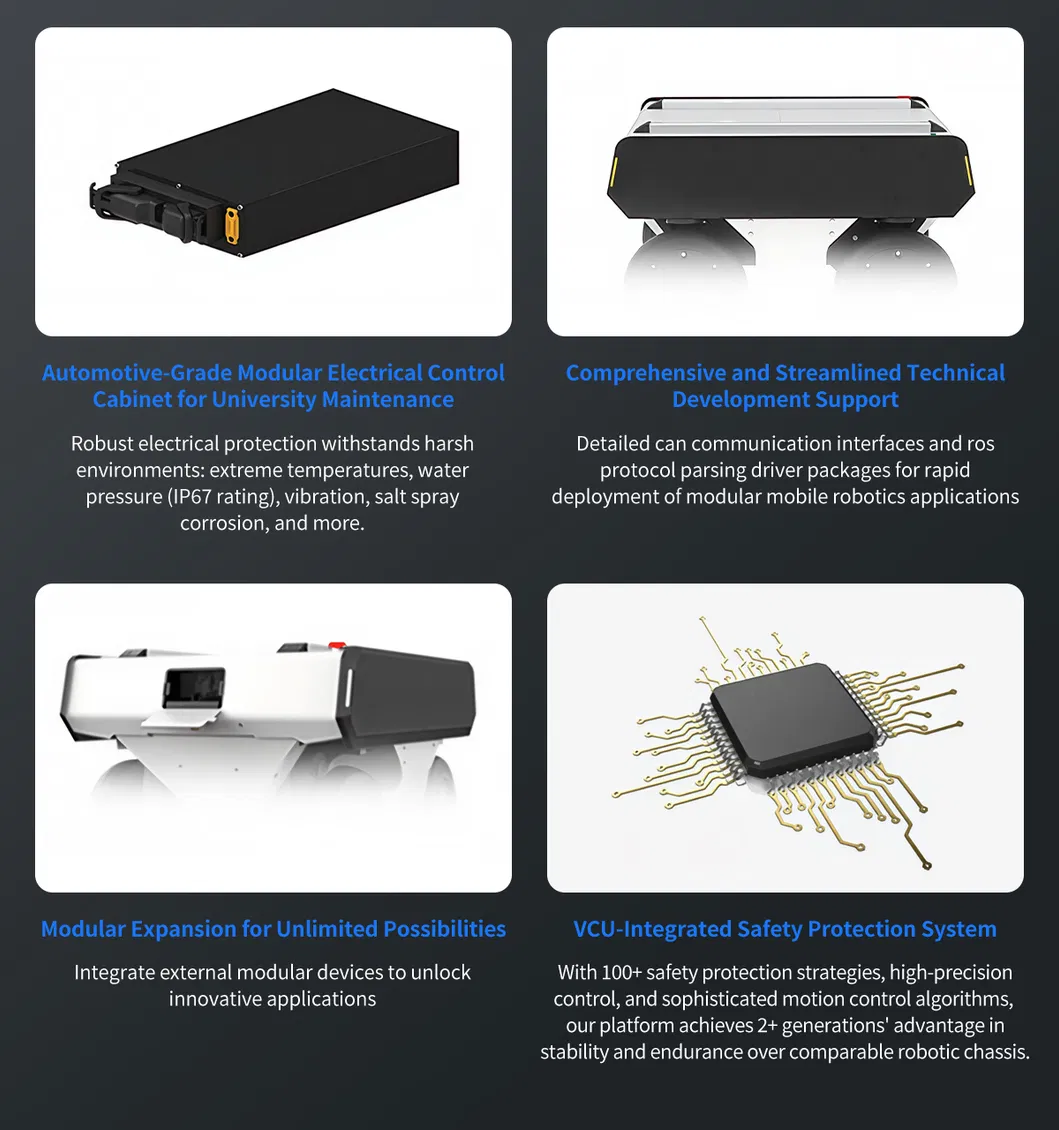

Robot Detail 13

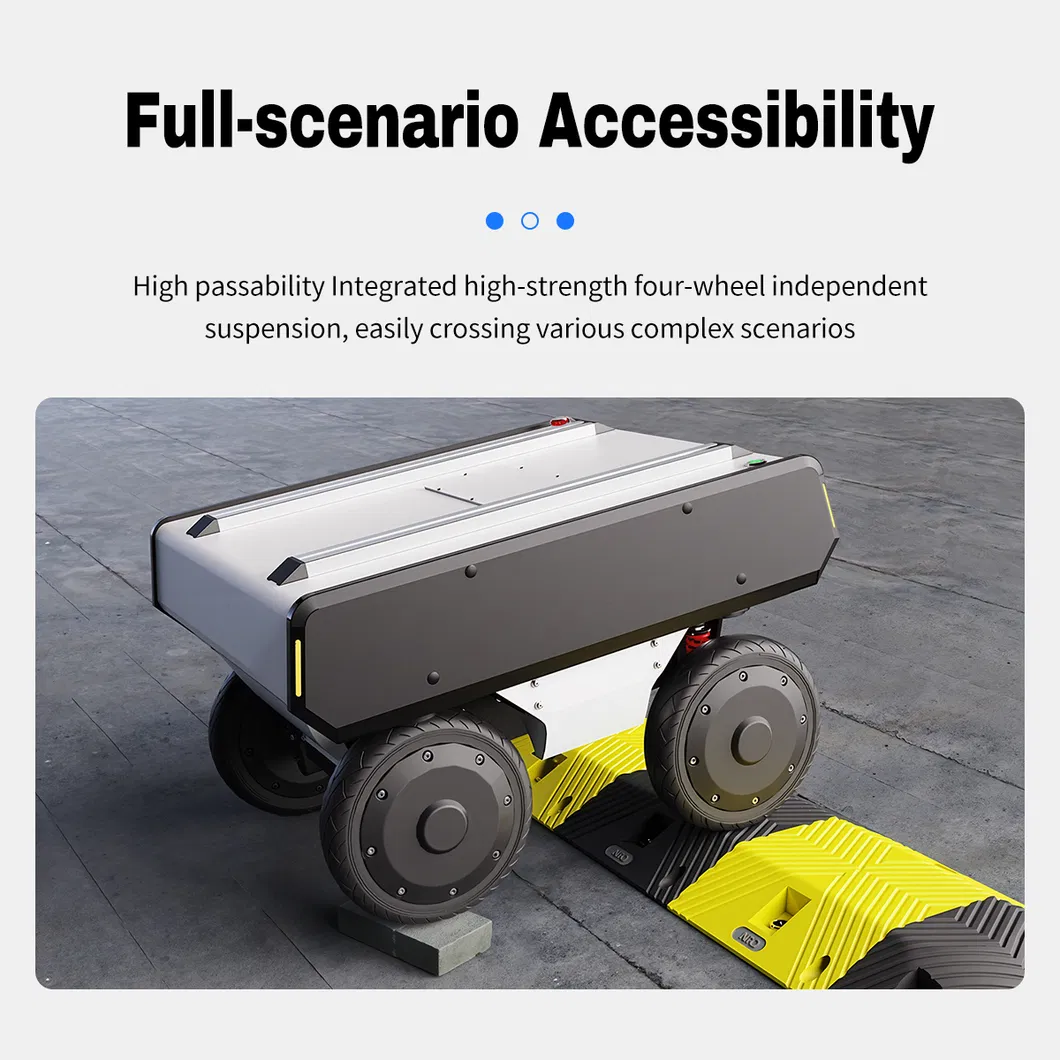

Robot Detail 14

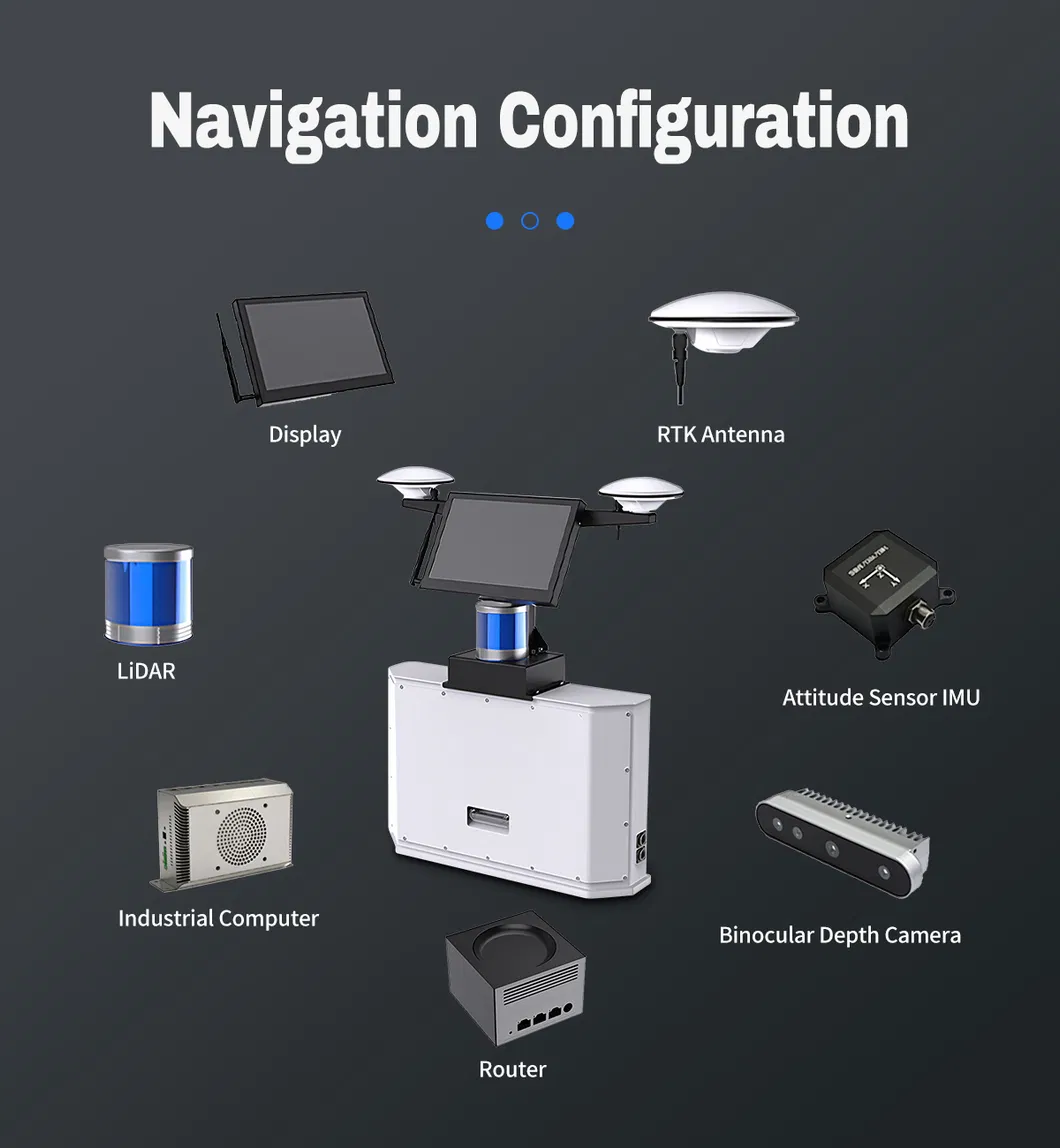

Robot Detail 15

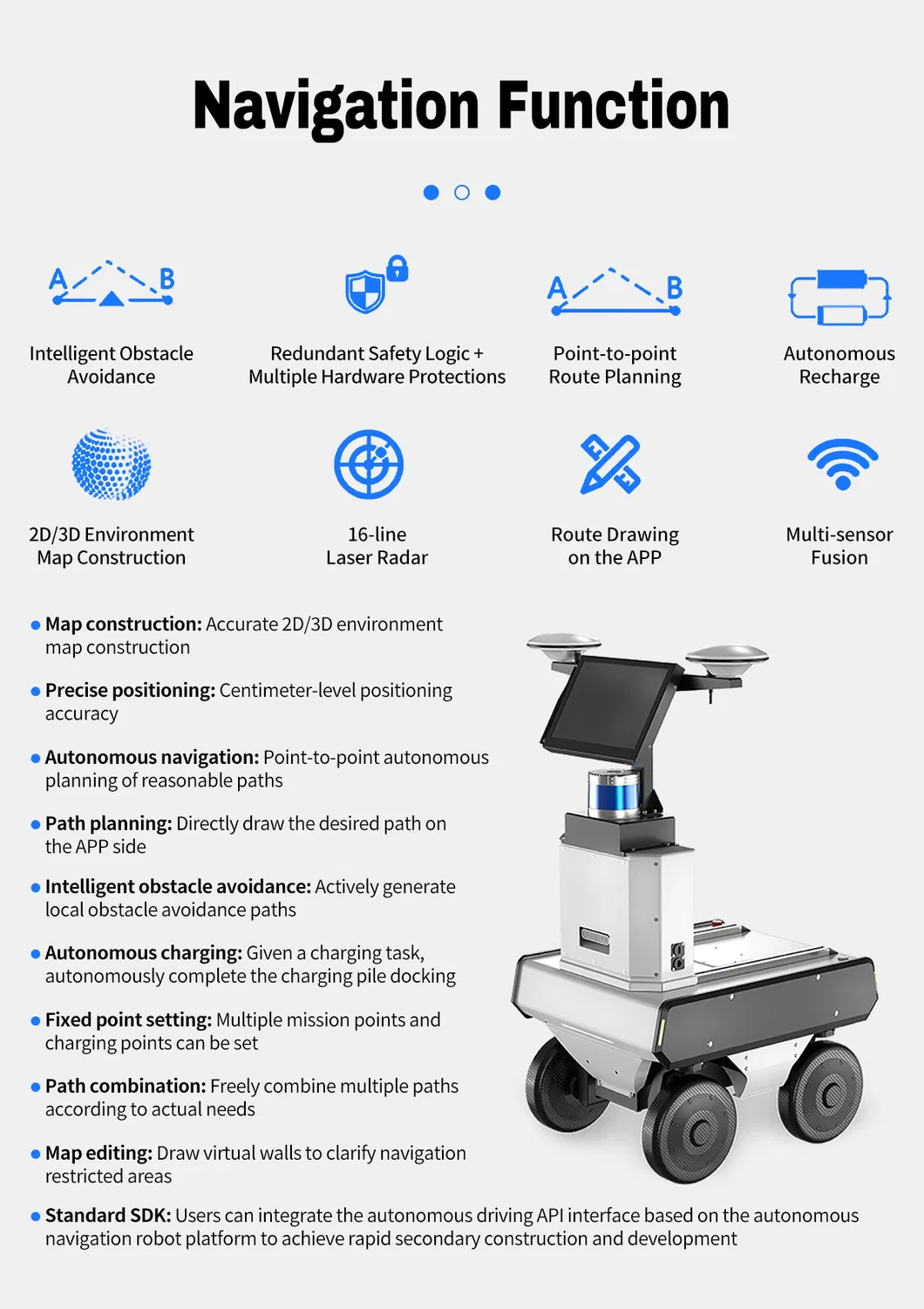

Robot Detail 16
Robot Detail 17
❓ Frequently Asked Questions
What is the maximum load capacity of this robot platform?
The platform can handle a maximum payload of up to 100 kg.
What kind of terrain can the FW-mid handle?
It is designed for complex road conditions including asphalt, grass, gravel, and epoxy pavements, with excellent climbing and obstacle-crossing capabilities.
Does it support lateral movement and on-site steering?
Yes, the 4-wheel independent steering (4WS) allows for precise lateral movement and 360-degree on-site steering.

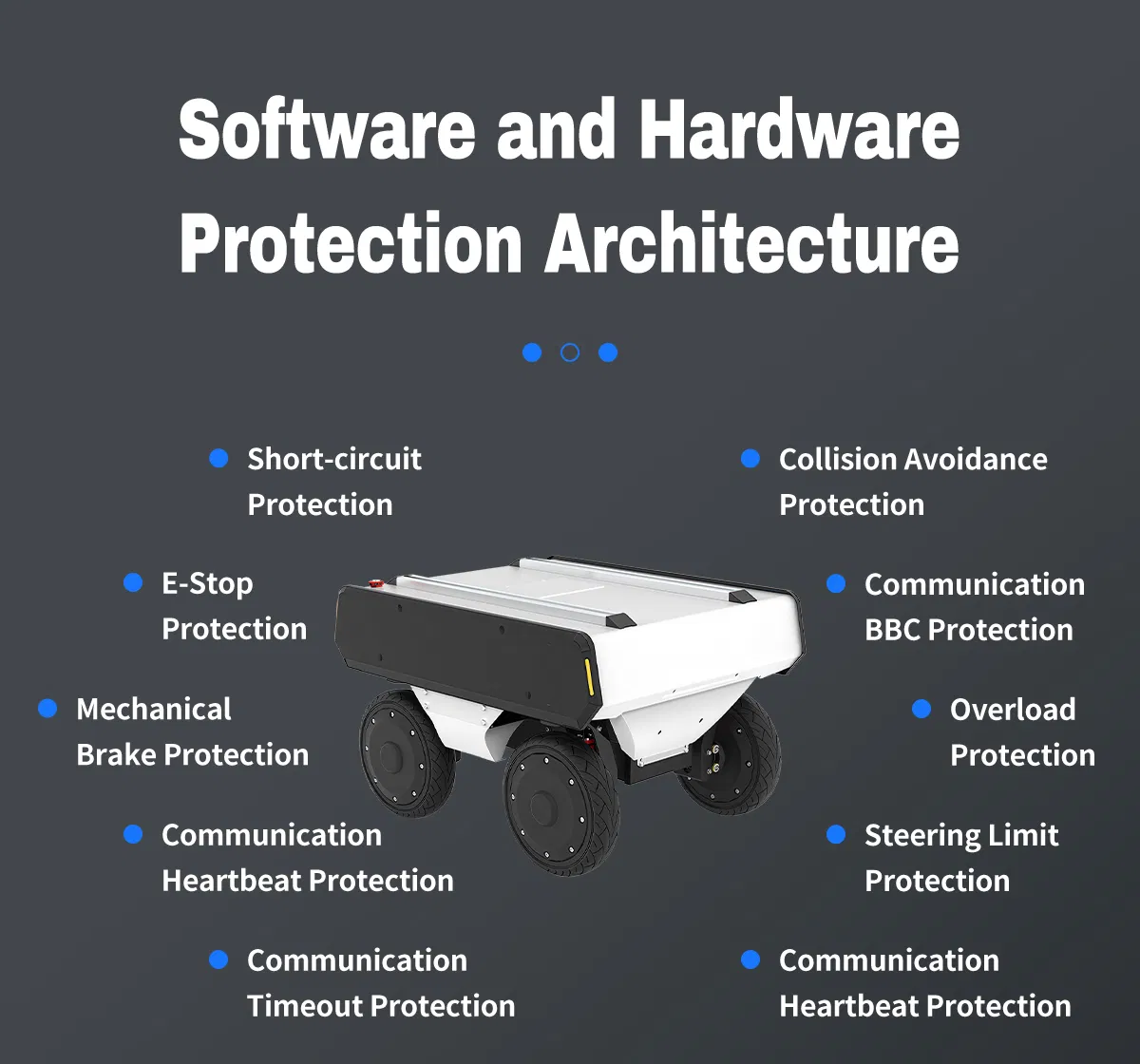

What are the safety features included?
The system includes a Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, and a Safety Laser Scanner.
What is the maximum operating range on a single charge?
The robot platform has an impressive operating range of approximately 40 km.
Can I integrate my own sensors or equipment?
Yes, the platform supports optional configurations like LiDAR, depth-sensing cameras, and robotic arms, making it highly customizable for various tasks.
