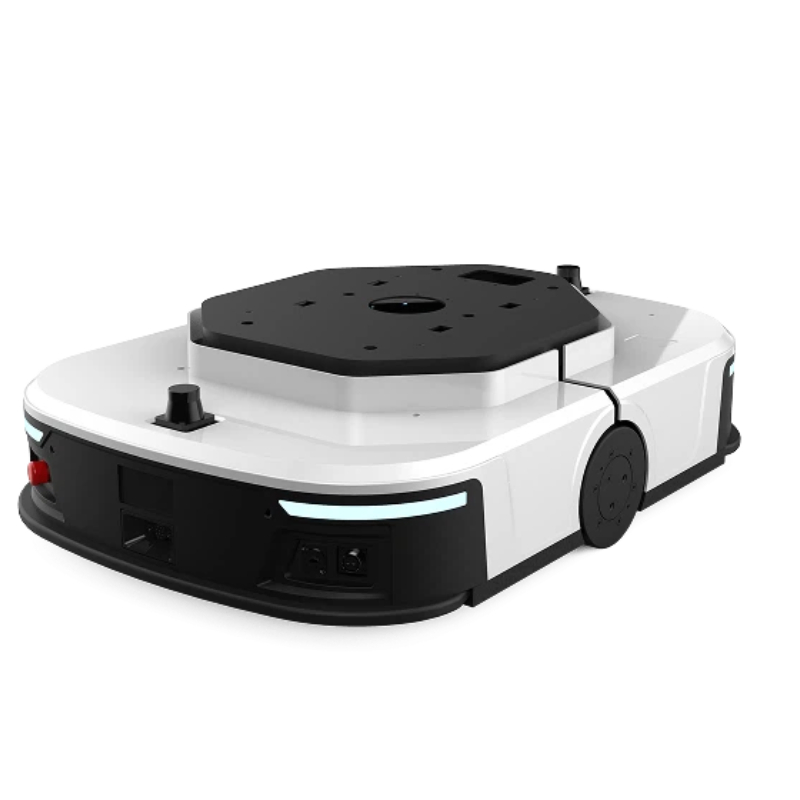

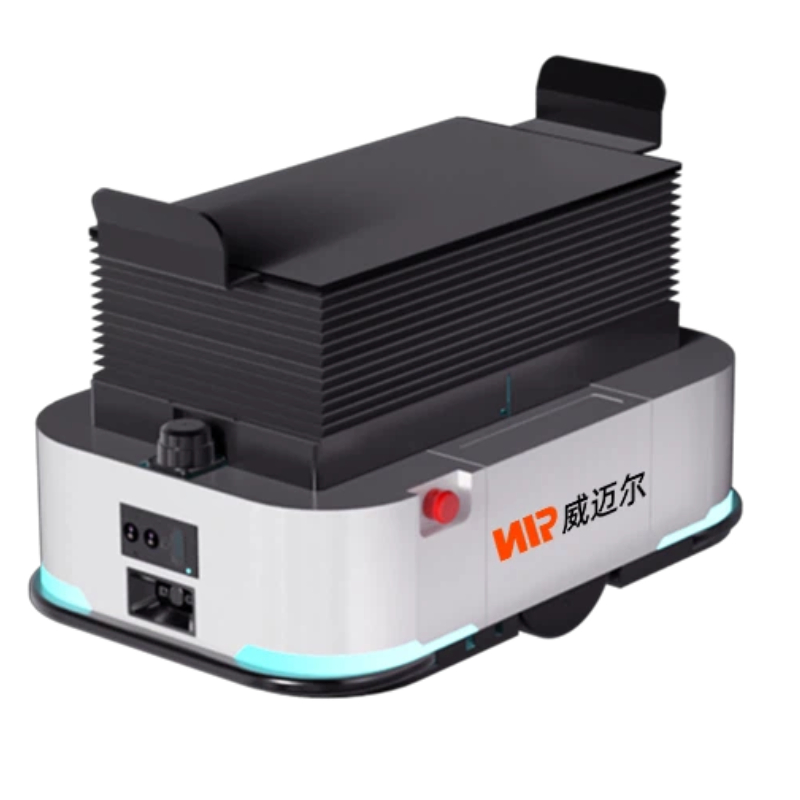

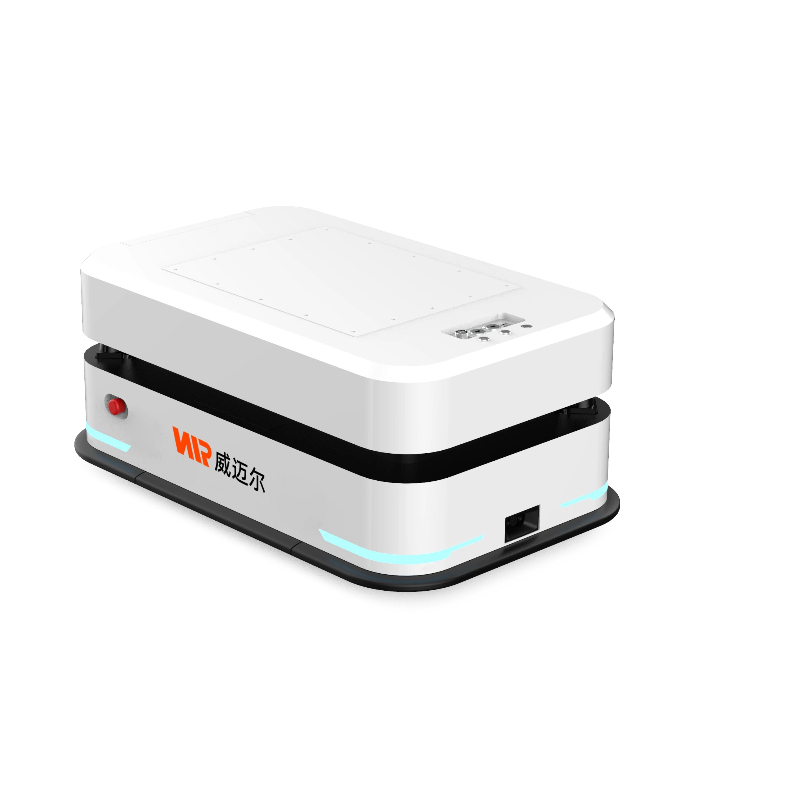

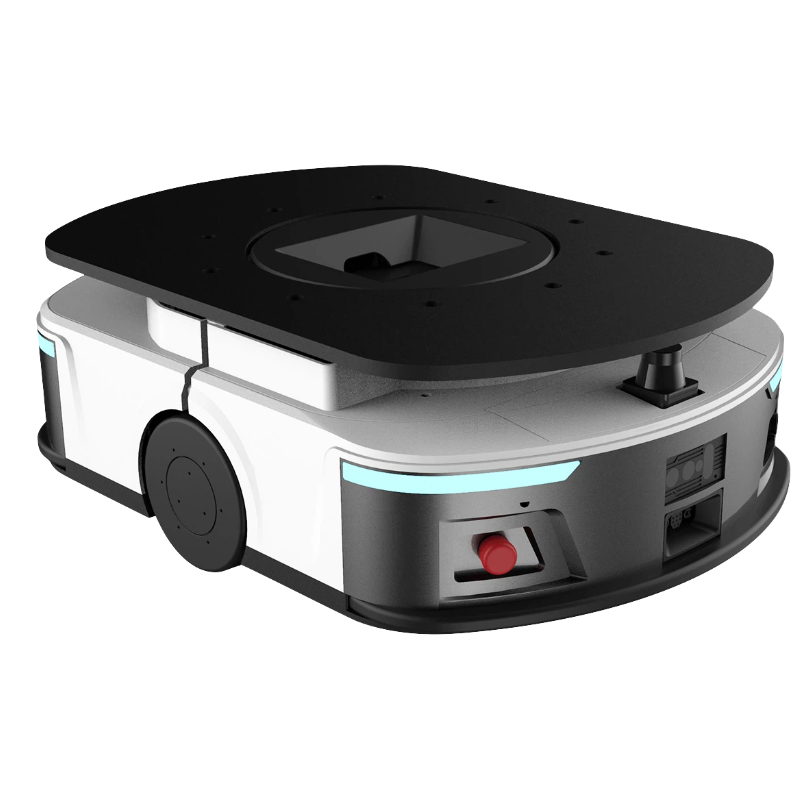

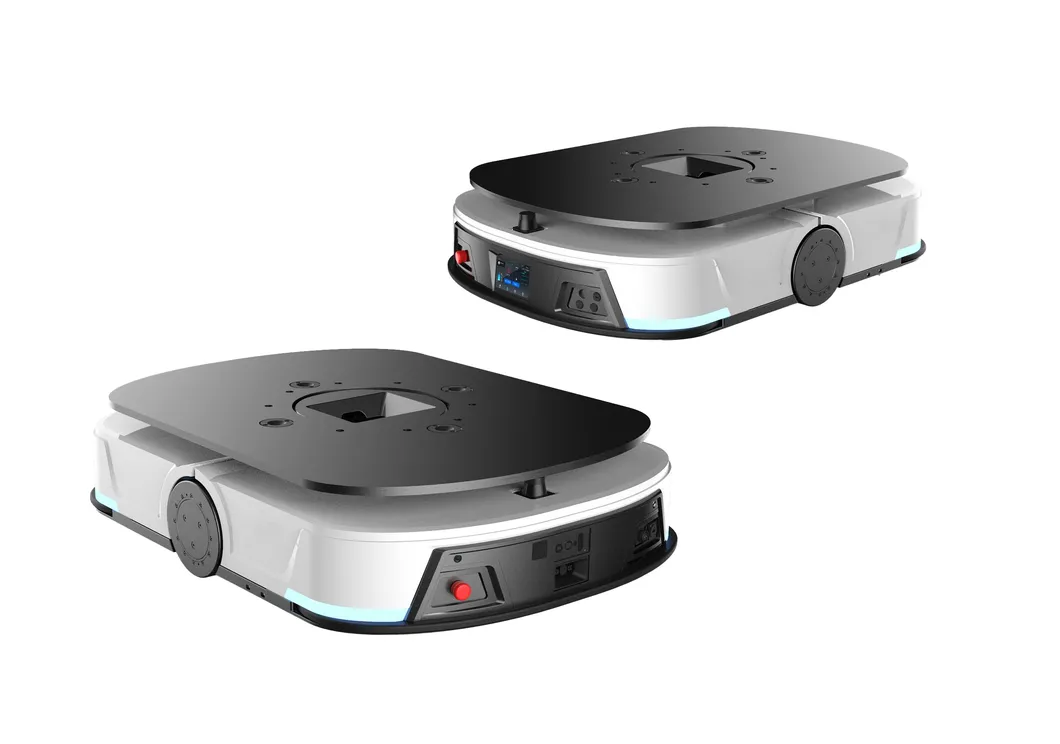

600kg AMR Underride Autonomous Mobile Robot
600kg AMR Underride Autonomous Mobile Robot
600kg AMR Underride Autonomous Mobile Robot
600kg AMR Underride Autonomous Mobile Robot
600kg AMR Underride Autonomous Mobile Robot
1 / 5
600kg AMR Underride Autonomous Mobile Robot
600kg AMR Underride Autonomous Mobile Robot
600kg AMR Underride Autonomous Mobile Robot
600kg AMR Underride Autonomous Mobile Robot
600kg AMR Underride Autonomous Mobile Robot

600kg AMR Underride Autonomous Mobile Robot

Customization: Available
Control Mode: Continuous Path Control
Drive Mode: Electric
Send Inquiry

Product Description

📋

Basic Information

Model NO.
VMR-FR3620L(CE)
Type
AMR (Autonomous Mobile Robot)
Load Capacity
600kg
Net Weight
135kg
Speed
0~2.0m/S
Battery Type
LFP (48V 40ah)
Dimensions
945 * 650 * 260 mm
Origin
China
🚀

Product Advantages

⚡ Precise Positioning Utilizes laser SLAM for autonomous positioning and navigation, complemented by 2D code navigation for ultra-precise docking.
🏗️ Stable Docking Features a stable and reliable lifting design that ensures secure docking of goods, meeting the demands of most industrial applications.
🧠 Self-developed Core Employs independently developed main control and business modules, offering high integration, stability, and reliability.
🛡️ Safety Protection Supports 3D visual obstacle avoidance, intelligently detecting obstacles for safer operation in dynamic environments.

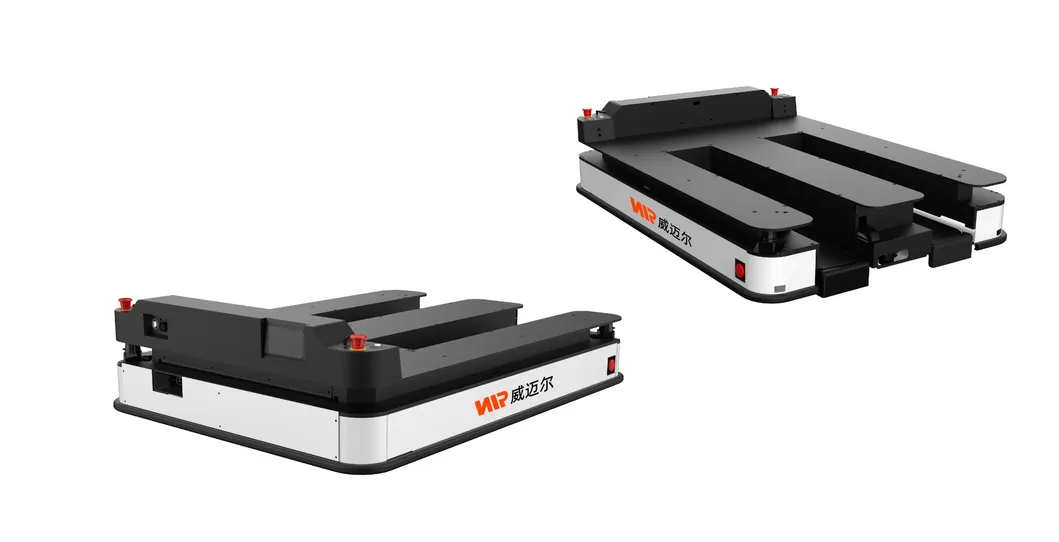

600kg AMR Underride Autonomous Mobile Robot Autonomous Mobile Robot Underside View
⚙️

Technical Specifications

Basic Performance
Lifting Height / Rated Load60 mm / 600 kg
RotationFlexible Rotation Supported (φ995 mm)
Protective Range360° coverage
Laser Obstacle AvoidanceLaser 360° coverage
Motion & Battery
Drive ModeTwo-wheeled differential drive
Battery Life≥ 8 hours
Charging MethodScheduled, Fixed-point, Low-power Return
HMI & Interface
LCD ScreenSupport
Expansion InterfaceRJ45 (100MB)
Sound PromptTurning, warning, music playback, etc.

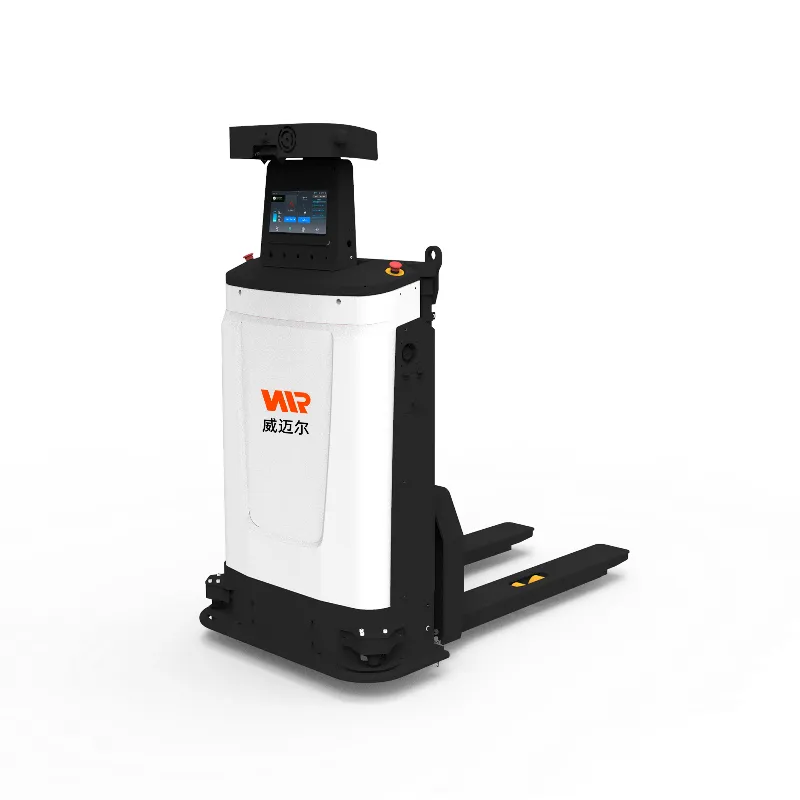

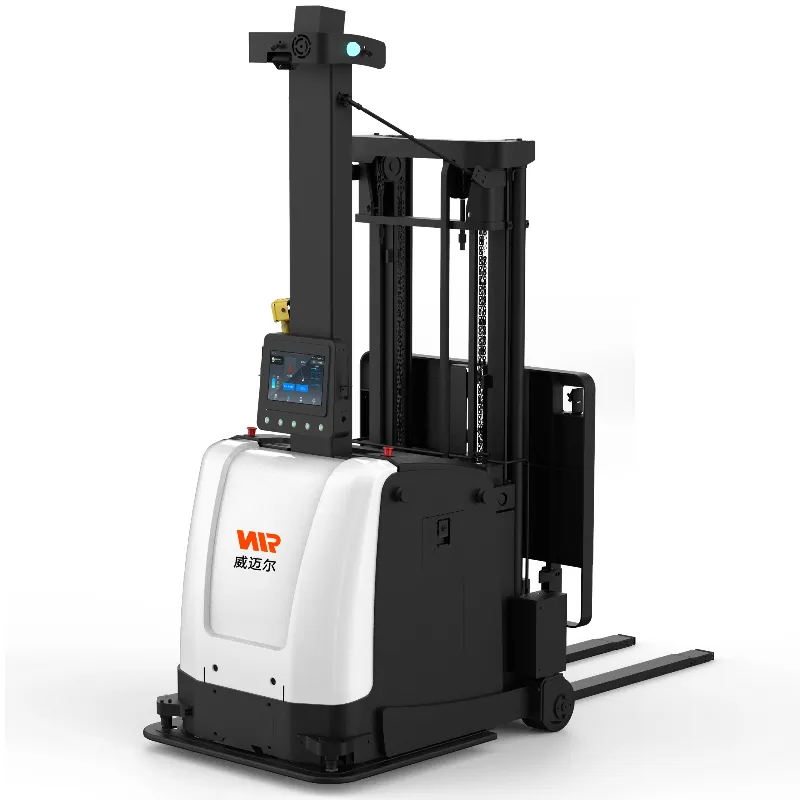

AMR Industrial Application AMR Warehouse Logistics
🏭

Applicable Industries

Providing flexible transportation and automated loading/unloading of materials for modern manufacturing environments:

  • Electrical & Electronics
  • Semiconductor & Photovoltaic
  • New Energy & Automotive Industry
  • Warehouse Storage & Cargo Sorting
🚢

Packaging & Shipping

Shipping MethodsDHL, Fedex, UPS, Sea shipping
Warranty2 Years
OEM ServicesAvailable (Custom Logo Support)
Technical SupportProfessional Technical Team Provided
Packaging details

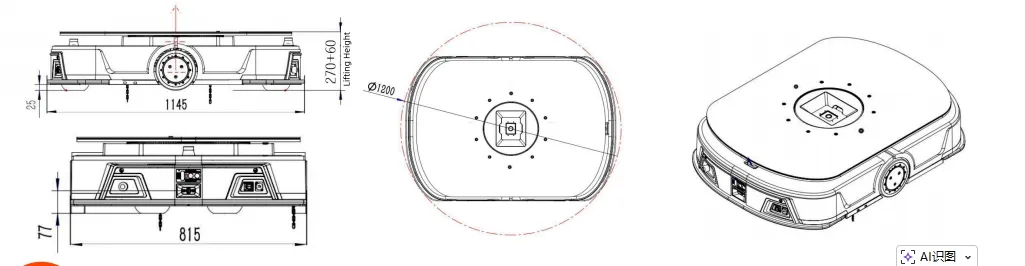

Product Certifications Quality Control
Certifications Display
❓

Frequently Asked Questions

What is the payload capacity of this AMR?
The VMR-FR3620L is designed with a rated load capacity of 600kg, making it suitable for heavy-duty industrial material handling.
How does the robot navigate through a warehouse?
The robot uses Laser SLAM (Simultaneous Localization and Mapping) for autonomous navigation, which does not require floor markers. For high-precision positioning, it can also use 2D code navigation.
What is the battery life and charging process?
It offers a battery life of 8 hours or more. The system supports multiple autonomous charging methods including scheduled charging, fixed-point charging, and automatic return-to-home when power is low.
What safety features ensure secure operation?
Safety is prioritized with 360° laser obstacle avoidance, 3D visual obstacle detection, safety edges (all-round protection), and an easily accessible emergency stop button.
Do you provide technical support for installation?
Yes, we provide full technical support. Every unit comes with a user manual, and our professional engineering team is available to assist with setup and troubleshooting.
What is the warranty period for the AMR?
We provide a standard 2-year warranty period starting from the date of receipt. Certain components may have extended warranty options.
